• Country
• Canada

• Manufacturer / Brand
• Electrohome (Dominion Industries, ex Phonola); Kitchener (Ontario)

• Year
• 1950 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 182501

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 7

• Valves / Tubes
• 6SA7 6SK7 6SQ7 6J5 6K6GT 6K6GT 5Y4GT

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 3.5 W (7 W max.)

• from Radiomuseum.org

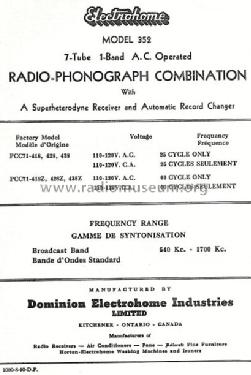

• Model: 352 PCC71-418Z [25 & 60 Hz] - Electrohome Dominion

• Notes
• Electrohome 352, PCC71-418 (=25 Hz, PCC71-418Z 60 Hz);

• Source of data
• - - Manufacturers Literature

• Literature/Schematics (1)
• Radio College of Canada (RCC) (Supplement 23 page 21.)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
