• Country
• Canada

• Manufacturer / Brand
• Electrohome (Dominion Industries, ex Phonola); Kitchener (Ontario)

• Year
• 1952

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 149351

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12AT6 12BA6 12BE6 50B5 35W4

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 105-125 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Leather / canvas / plastic - over other material

• from Radiomuseum.org
• Model: Atom - Electrohome Dominion

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 12.5 x 6.75 x 5.5 inch / 318 x 171 x 140 mm

• Notes
• Electrohome Atom;
  Finishes: natural - leatherette - green - red - ivory.

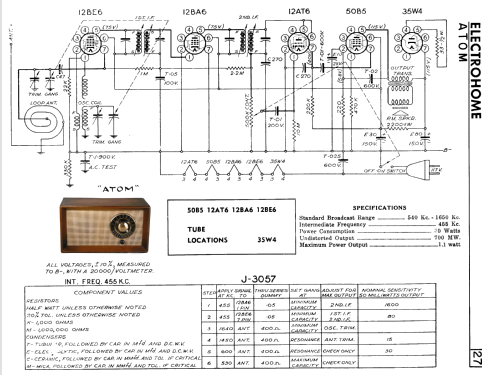

• Circuit diagram reference
• Radio College of Canada

• Mentioned in
• Suppl 27 page 27

• Author
• Model page created by Ashis Mukerjea. See "Data change" for further contributors.
