• Country
• Canada

• Manufacturer / Brand
• Electrohome (Dominion Industries, ex Phonola); Kitchener (Ontario)

• Year
• 1960 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 307973

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 19

• Valves / Tubes
• 6BA6 6BE6 6BQ7A 6U8 6BA6 6AU6 6AU6 6AL5 6AV6 6AV6 12AU7 12AU7 12AX7 12AX7 6AQ5 6AQ5 6AQ5 6AQ5 5U4GB

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz; 5 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• 6 Loudspeakers

• Power out
• 12 W (24 W max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Canterbury I - Electrohome Dominion

• Shape
• Console with any shape - in general

• Notes

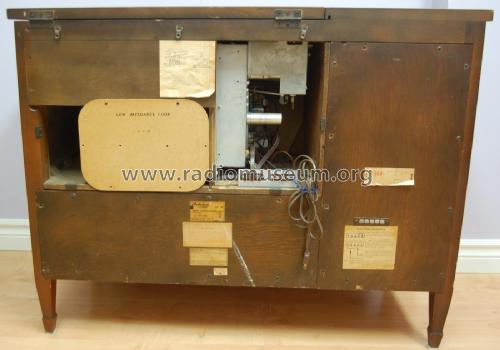

• The Electrohome Canterbury I is a 19-tube AM/FM console radio with built-in record changer and stereo amplifier. Has two external speaker cabinets each containing a woofer and two tweeters. Some models may also have a 6FG6 eye tube.

• Literature/Schematics (1)
• Radio College of Canada (RCC) (Supplement 51)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
