- Country
- Canada
- Manufacturer / Brand
- Electrohome (Dominion Industries, ex Phonola); Kitchener (Ontario)
- Year
- 1955 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 301694

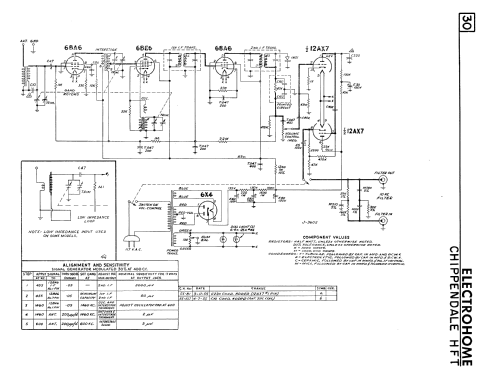

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 11
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 4 AF stage(s)
- Tuned circuits
- 7 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- 2 Loudspeakers
- Power out
- 10 W (15 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Chippendale HFT - Electrohome Dominion
- Shape
- Console with any shape - in general
- Notes
-
The Electrohome Chippendale HFT is a console radio with a 5-tube AM tuner chassis, 6-tube amplifier chassis and built in Garrard RC-80M record changer. Has woofer, and tweeter. For 25 or 60 Hz depending on nameplate rating
- Literature/Schematics (1)
- Radio College of Canada (RCC) (1956 supplement 37)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
