- Country
- Canada
- Manufacturer / Brand
- Electrohome (Dominion Industries, ex Phonola); Kitchener (Ontario)
- Year
- 1960 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 307975

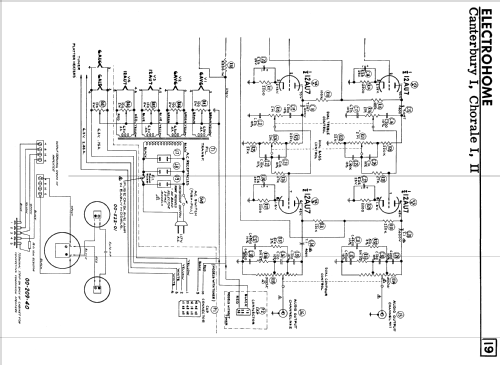

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 19
- Valves / Tubes
- 6BA6 6BE6 6BQ7A 6U8 6BA6 6AU6 6AU6 6AL5 6AV6 6AV6 12AU7 12AU7 12AX7 12AX7 6AQ5 6AQ5 6AQ5 6AQ5 5U4GB
- Main principle
- Superhet with RF-stage; ZF/IF 455/10700 kHz; 5 AF stage(s)
- Tuned circuits
- 7 AM circuit(s) 9 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Details
- Changer (Record changer)
- Power type and voltage
- Alternating Current supply (AC) / 117 Volt
- Loudspeaker
- 6 Loudspeakers
- Power out
- 12 W (24 W max.)
- Material
- Wooden case
- from Radiomuseum.org
- Model: Chorale II - Electrohome Dominion
- Shape
- Console with any shape - in general
- Notes
-
The Electrohome Chorale II is a 19-tube AM/FM console radio with built-in record changer and stereo amplifier. Has two external speaker cabinets each containing a woofer and two tweeters. Some models may also have a 6FG6 eye tube.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (Supplement 51)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
