• Country
• Canada

• Manufacturer / Brand
• Electrohome (Dominion Industries, ex Phonola); Kitchener (Ontario)

• Year
• 1956 ?

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 304057

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12AX7 12AT7 6AQ5 6AQ5 5Y3GT

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 6 W (9 W max.)

• Material
• Wooden case

• from Radiomuseum.org

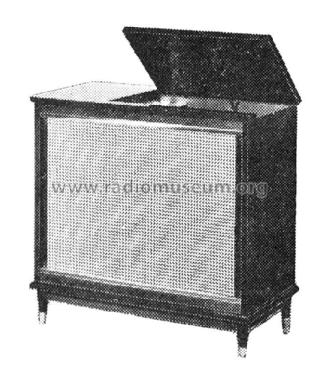

• Model: Concerto II - Electrohome Dominion

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• The Electrohome model Concerto II is a 5-tube record changer console. With Tape and Aux input. Frequency response 30-15000 Hz. For 25 or 60 Hz depending on nameplate rating.

• Literature/Schematics (1)
• Radio College of Canada (RCC) (1956-57 Supplement 39)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
