• Country
• Canada

• Manufacturer / Brand
• Electrohome (Dominion Industries, ex Phonola); Kitchener (Ontario)

• Year
• 1960 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 308172

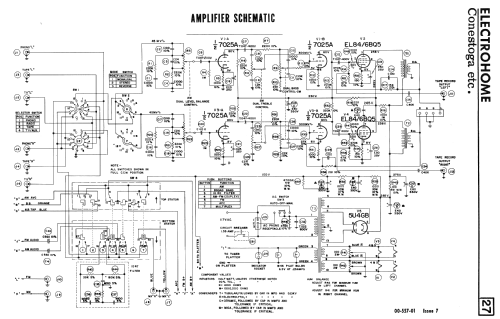

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 15

• Valves / Tubes
• 6ER5 6AQ8 6BA6 6AU6 6AU6 6AL5 6BA6 6BE6 6BA6 6AV6 7025A 7025A 6BQ5 6BQ5 5U4GB

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz; 3 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• 6 Loudspeakers

• Material
• Wooden case

• from Radiomuseum.org
• Model: Conestoga - Electrohome Dominion

• Shape
• Console, Lowboy (legs < 50 %).

• Notes

• The Electrohome Conestoga is a 15-tube AM/FM console radio with built-in stereo amplifier and record changer. Has woofer, mid range and tweeter for each channel. Same schematic as the Electrohome Kalmar.

• Literature/Schematics (1)
• Radio College of Canada (RCC) (Sup 56)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
