• Country
• Canada

• Manufacturer / Brand
• Electrohome (Dominion Industries, ex Phonola); Kitchener (Ontario)

• Year
• 1957 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 337771

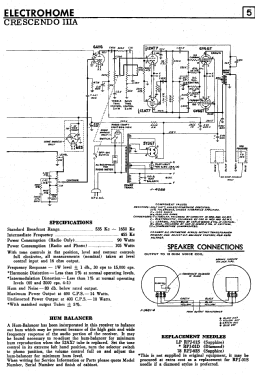

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 9

• Valves / Tubes
• 6BA6 6BE6 6BA6 6AV6 12AX7 12AT7 6V6GT 6V6GT 5Y3GT

• Main principle
• Superhet with RF-stage; ZF/IF 455 kHz; 3 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• 6 Loudspeakers

• Power out
• 10 W (14 W max.)

• Material
• Wooden case

• from Radiomuseum.org

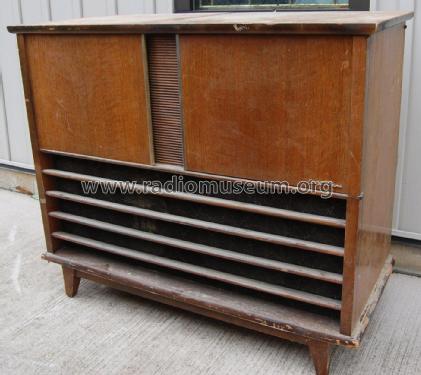

• Model: Crescendo IIIA - Electrohome Dominion

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 37.6 x 31.5 x 16.4 inch / 955 x 800 x 417 mm

• Notes

• The Elecrohome model Crescendo IIIA is a 9-tube console radio with built in Garrard RC 88/4 record changer.. Bass and treble controls, and magnetic pickup.
  Note; some versions may also have a 6E5 eye tube.

  Two 12" twin-triaxial speakers (two 3.5" tweeters are coupled to each 12" woofer).

• Literature/Schematics (1)
• Radio College of Canada (RCC) (1957-1958 Supplement 42)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
