• Country
• Canada

• Manufacturer / Brand
• Electrohome (Dominion Industries, ex Phonola); Kitchener (Ontario)

• Year
• 1950 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 174700

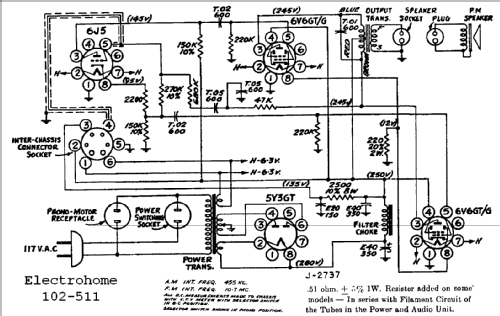

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• 6BA6 12AT7 6BA6 6AV6 6AU6 6AL5 6J5 6V6G 6V6G 5Y3GT

• Main principle
• Superhet with RF-stage; ZF/IF 455/10700 kHz; 2 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)     9 FM circuit(s)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Details
• Record Player (perh.Changer)

• Power type and voltage
• Alternating Current supply (AC) / 110-120 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 8.1 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Custom Built Chassis Ch= CHF102-511 - Electrohome Dominion

• Shape
• Chassis only or for «building in»

• Notes
• Electrohome Custom Built Chassis CHF102-511;
  AM: 540 - 1650 kHz.
  FM: 88 - 108 MHz, 89 W power consumption. Push-pull audio amplifier.

• Source of data
• - - Manufacturers Literature

• Circuit diagram reference
• Radio College of Canada

• Mentioned in
• RCC Supplement

• Author
• Model page created by a member from A. See "Data change" for further contributors.
