• Country
• Canada

• Manufacturer / Brand
• Electrohome (Dominion Industries, ex Phonola); Kitchener (Ontario)

• Year
• 9999 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 300911

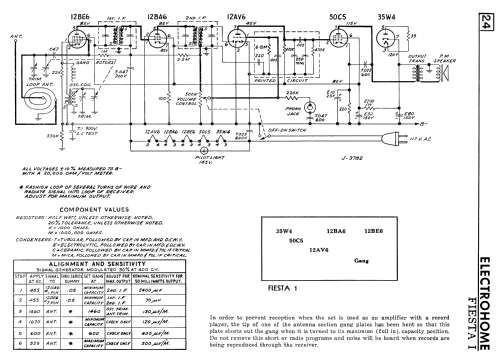

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 0

• Valves / Tubes
• 12BE6 12BA6 12AV6 50C5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Doublet with ID= 289736 - Electrohome Dominion

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Notes

• The Electrohome "Fiesta I" is 5-tube table radio for broadcast reception.

• Literature/Schematics (1)
• 1957 Supplement 39

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
