Planar Stereophonic Receiver SR 2040

Electrohome (Dominion Industries, ex Phonola); Kitchener (Ontario)

Data
Forum
Pictures
Collections

  • Year
  • 1978 ??
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 274521

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 60Hz: 120 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 40 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Planar Stereophonic Receiver SR 2040 - Electrohome Dominion
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 440 x 150 x 380 mm / 17.3 x 5.9 x 15 inch
  • Notes

  • Electrohome FM/AM Stereohonic Receiver Model Planar SR 2040.
    FM/AM 2 Channel Stereophonic Receiver with built-in 4 Channel Speaker Matrixing.
    2x 20 Watts Sinus into 8Ω; 4Ω capability but power not specified.
    FM 87 - 109 MHz
    AM 525 - 1650 kHz
    Inputs: Phono CER, Phono Mag, AUX, Tape
    Speakers A, B, A+B, 4A
    Tape Monitor
    Loudness
    High Filter
    Bass- & Treble Control
    AC Outlets:
    120VAC max. 200 Watts unswitched
    120VAC max. 100 Watts switched
    Cabinet finished with wood grain vinyl veneer.
    Made in Taiwan.


  • Net weight (2.2 lb = 1 kg)
  • 10.9 kg / 24 lb 0.1 oz (24.009 lb)
  • Mentioned in

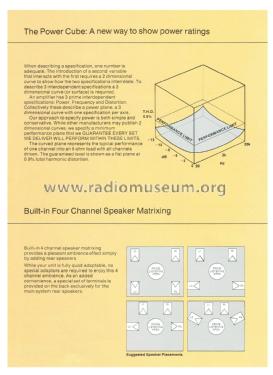

  • -- Original prospect or advert
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
