- Country
- Canada
- Manufacturer / Brand
- Electrohome (Dominion Industries, ex Phonola); Kitchener (Ontario)
- Year
- 1949 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 294731

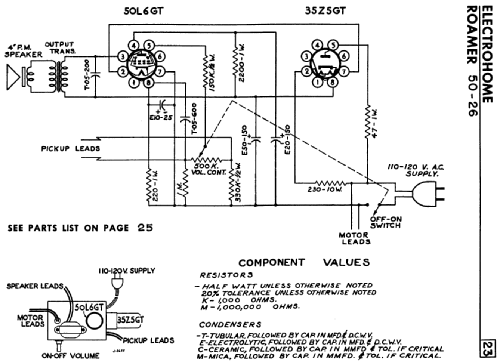

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Tubes
- 2
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Record Player (not changer)
- Power type and voltage
- Alternating Current supply (AC) / 110 to 120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm
- from Radiomuseum.org
- Model: Roamer 50-26 - Electrohome Dominion
- Notes
-
The Canadian Electrohome model Roamer 50-26 is a 2-tube record player. For 25 or 60 Hz depending on nameplate rating.
- Literature/Schematics (1)
- Radio College of Canada (RCC) (Supplement 21 page 23 and 25)
- Author
- Model page created by Tom Seeger. See "Data change" for further contributors.
