• Country
• Canada

• Manufacturer / Brand
• Electrohome (Dominion Industries, ex Phonola); Kitchener (Ontario)

• Year
• 1949 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 294732

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12BE6 12BA6 12AT6 50B5 35W4

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• AC/DC-set / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 0.7 W (1.5 W max.)

• from Radiomuseum.org

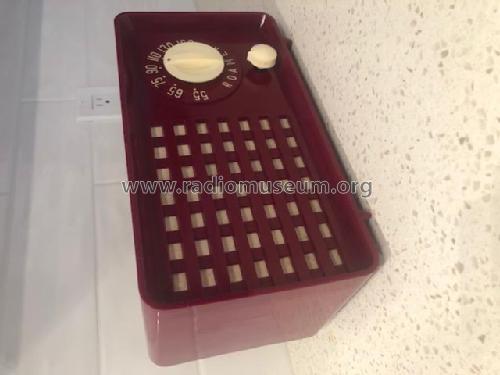

• Model: Roamer 50-38 - Electrohome Dominion

• Notes

• The Canadian Electrohome Roamer model 50-38 is an 5-tube, broadcast only radio.

• Literature/Schematics (1)
• Radio College of Canada (RCC) (Supplement 21 Page 24 and 25)

• Author
• Model page created by Tom Seeger. See "Data change" for further contributors.
