• Country
• Canada

• Manufacturer / Brand
• Electrohome (Dominion Industries, ex Phonola); Kitchener (Ontario)

• Year
• 1964 ??

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 231451

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• 12AV6 12AV6 12AU7 50C5 50C5 35W4

• Main principle
• Audio-Amplification; 3 AF stage(s)

• Wave bands
• - without

• Details
• Changer (Record changer); Hi-Fi equipment

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7 inch = 17.8 cm

• Power out
• 2.3 W (max.)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Steelman Series 4B35S2 [Two cabinet stereo] - Electrohome Dominion

• Shape
• Miscellaneous shapes - described under notes.

• Dimensions (WHD)
• 26 x 13.5 x 17 inch / 660 x 343 x 432 mm

• Notes

• Two cabinet stereo player, each on 12 inch legs.

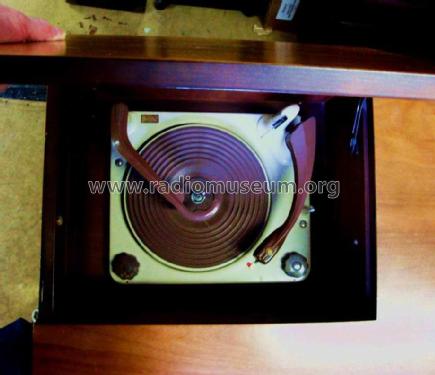

  Record Player BSR Stereo Model UA8 - 16 33 45 78 RPM



• Author
• Model page created by Neil Van Dusen. See "Data change" for further contributors.
