• Country
• Canada

• Manufacturer / Brand
• Electrohome (Dominion Industries, ex Phonola); Kitchener (Ontario)

• Year
• 1954 ?

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 326070

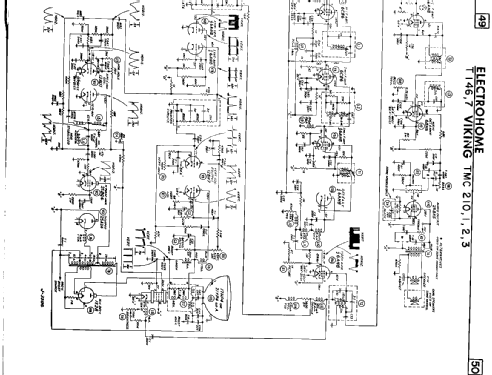

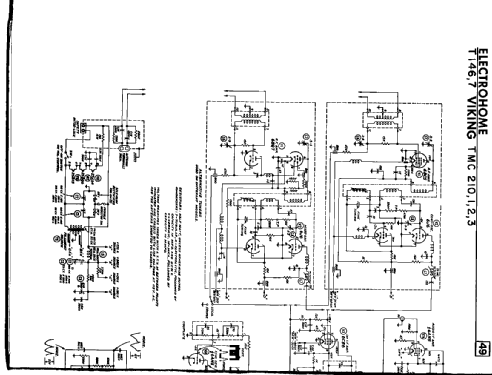

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 15

• Valves / Tubes
• 6BC5 6J6 12BH7 6CB6 6CB6 6AN8 6AN8 25BK5 6AN8 6BN6 12AU7 25BQ6 1X2B 25AX4 17HP4

• Main principle
• Superhet with RF-stage

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 60 Hz, 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Metal case

• from Radiomuseum.org
• Model: T-147 VIKING TMC 210,1,2,3 - Electrohome Dominion

• Shape

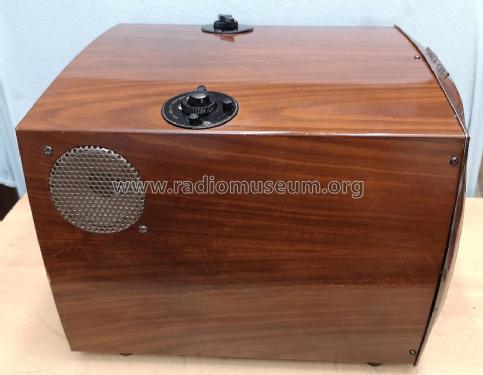

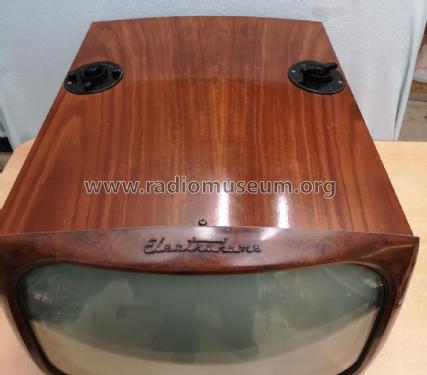

• Tablemodel, low profile (big size).

• Notes

• With North American standard VHF tuner.

• Author
• Model page created by Axel Paap. See "Data change" for further contributors.
