• Country
• United States of America (USA)

• Manufacturer / Brand
• Electromatic Manufacturing Corp.; New York, NY

• Year
• 1946

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 138229

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 12SA7GT 12SK7GT 12SQ7GT 50L6GT 35W4 or 35Z5

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz; 2 AF stage(s)

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Changer (Record changer)

• Power type and voltage
• Alternating Current supply (AC) / 117 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4.75 inch = 12.1 cm

• Material
• Wooden case

• from Radiomuseum.org

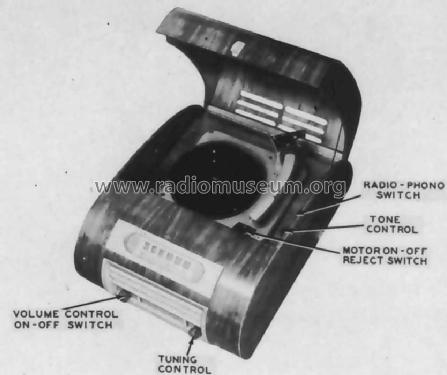

• Model: 607A - Electromatic Manufacturing

• Shape
• Tablemodel, with any shape - general.

• Notes
• Sams photofact folder 465-32 date 10-46 features the Electromatic models 606A and 607A as the same schematic. Avilable in three popular finishes: primavera, walnut, mahogany.

• Mentioned in
• Radio Retailing (Radio & Television R.) (September 1946 page 27.)

• Literature/Schematics (1)
• Photofact Folder, Howard W. SAMS (Folder 465-32 date 10-46)

• Author
• Model page created by Peter Hoddow. See "Data change" for further contributors.
