• Country
• Germany

• Manufacturer / Brand
• Electromophon AG; Stuttgart Vaihingen auf den Fildern

• Year
• 1931 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 355928

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes
• 24A 235 224A 47 80

• Main principle
• TRF without regeneration; 1 AF stage(s)

• Tuned circuits
• 3 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Details
• Record Player (not changer)

• Power type and voltage
• Alternating Current supply (AC) / 110/220 Volt

• Loudspeaker
• Electro Magnetic Dynamic LS (moving-coil with field excitation coil) / Ø 20 cm = 7.9 inch

• Material
• Wooden case

• from Radiomuseum.org

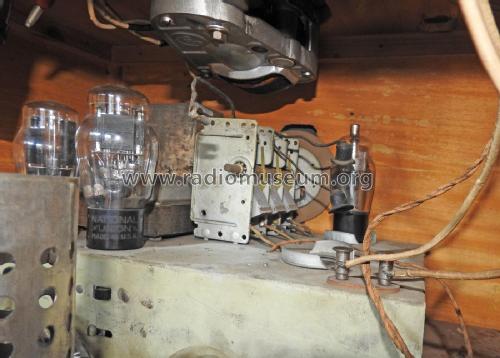

• Model: Radio Grammophon Radio Ch= Clarion jr. Mod. 40; Induktions-Laufwerk Modell 37 - Electromophon AG; Stuttgart

• Shape
• Console, Lowboy (legs < 50 %).

• Dimensions (WHD)
• 550 x 1000 x 400 mm / 21.7 x 39.4 x 15.7 inch

• Notes

• Standgerät mit Electromophon Grammophon mit Tonabnehmer und mit einem Radio Clarion 40 Junior.

• Author
• Model page created by Heribert Jung. See "Data change" for further contributors.
