• Country
• Great Britain (UK)

• Manufacturer / Brand
• Electronic Laboratories (Seafarer); Poole

• Year
• 1980 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 204504

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Long Wave and/or Very Low Frequency (VLF).

• Power type and voltage
• Dry Batteries / 9 Volt

• Loudspeaker
• - only for Earphone!

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

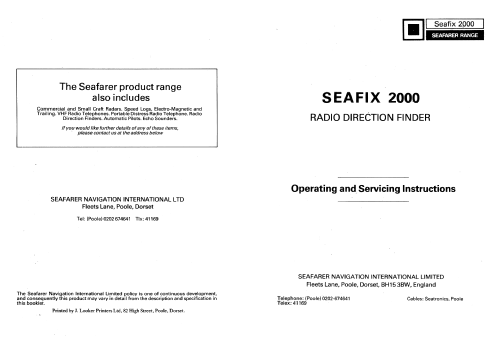

• Model: Seafarer Range Seafix 2000 - Electronic Laboratories

• Notes
• Radio direction finder. Frequency range 190 - 420 kHz. Built in sight bearing compass. Receives BBC Radio 4 on 198 kHz.

• Author
• Model page created by Mike Edwards † 25.10.21. See "Data change" for further contributors.
