• Country
• United States of America (USA)

• Manufacturer / Brand
• Electronic Measurements Corp. (EMC); New York, NY.

• Year
• 1950 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 138854

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 1S5

• Power type and voltage
• Line / Batteries (any type) / 110 ;1.5 Volt

• Material
• Wooden case

• from Radiomuseum.org

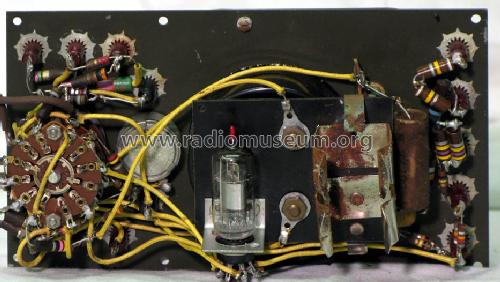

• Model: Volt Ohm Meter 101B - Electronic Measurements Corp.

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 225 x 105 x 195 mm / 8.9 x 4.1 x 7.7 inch

• Notes
• Measurement Ranges:
  6,60,300,600,3000 VDC
  12,120,600,1200 VAC
  6,60,600mAdc
  200,500 Ohm,50 kOhm,5 MOhm
  < Note: Line voltage needed only for 5 MOhm resistance range.

• Net weight (2.2 lb = 1 kg)
• 1.6 kg / 3 lb 8.4 oz (3.524 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Juhani Makivuoti † 21.09.13. See "Data change" for further contributors.
