Diamond-Dot PD-C12J
EIL (Electronics Industries Limited); Melbourne
- Country
- Australia
- Manufacturer / Brand
- EIL (Electronics Industries Limited); Melbourne
- Year
- 1966
- Category
- Car Radio, perhaps also + sound player/recorder
- Radiomuseum.org ID
- 219076
-
- alternative name: Eclipse Radio Pty Ltd || Radio Corporation Pty Ltd
- Brand: EIL; Melbourne

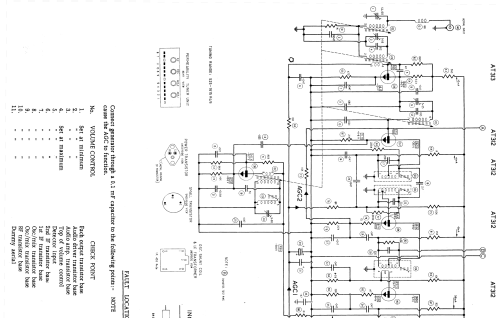

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 11
- Main principle
- Superhet with RF-stage; ZF/IF 455 kHz; 3 AF stage(s)
- Tuned circuits
- 8 AM circuit(s)
- Wave bands
- Broadcast only (MW).
- Power type and voltage
- Storage Battery for all (e.g. for car radios and amateur radios) / 12-14 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Material
- Metal case
- from Radiomuseum.org
- Model: Diamond-Dot PD-C12J - EIL Electronics Industries
- Notes
-
Push Button Car Radio.
Designed for dual polarity and fitted with a switch for polarity changeover.
See the Manual tuning Model MD-C12J.
- Mentioned in
- Silicon Chip, July 2022, Page 94
- Literature/Schematics (1)
- -- Original-techn. papers. (Diamond Dot Service Data, C12J-1, 22/9/1966.)
- Literature/Schematics (2)
- -- Original-techn. papers. (Diamond Dot Service Data, C12J-2, 6/12/1966.)
- Literature/Schematics (3)

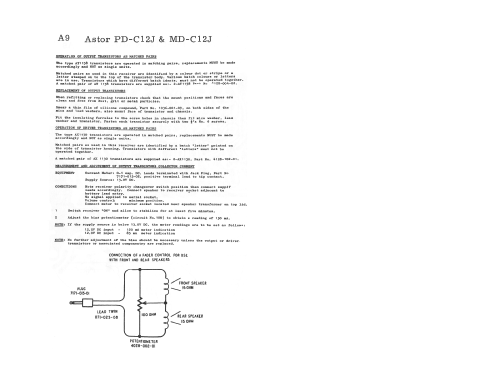

- J.R. Publications Car Radio Service Handbook (Group G6, September 1969, Page A9.)
- Author
- Model page created by Stuart Irwin. See "Data change" for further contributors.
