• Country
• Spain

• Manufacturer / Brand
• Ensa, Electrónica Ensa, S.A.; Alcobendas (Madrid)

• Year
• 1979 ??

• Category
• Commercial Transmitter & Receiver (TRX not Amateur)

• Radiomuseum.org ID
• 212580

• Number of Transistors
• 49

• Semiconductors

• Main principle
• Superhet, double/triple conversion; ZF/IF 10700/450 kHz; 2 AF stage(s)

• Tuned circuits
• 8 FM circuit(s)

• Power type and voltage
• Alternating Current supply (AC) / 120; 230 / 24 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm

• Power out
• 2 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

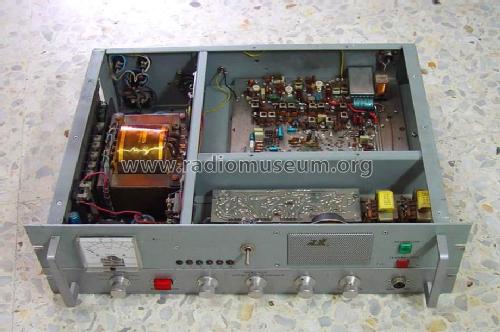

• Model: Repetidor-Base VHF EN-222-B - Ensa, Electrónica Ensa, S.A.;

• Shape
• Rack

• Dimensions (WHD)
• 490 x 180 x 340 mm / 19.3 x 7.1 x 13.4 inch

• Notes
• Base-o repetidor de VHF. 6 canales a cristal entre 29,5 - 50 MHz. 25W RF.

• Net weight (2.2 lb = 1 kg)
• 17 kg / 37 lb 7.1 oz (37.445 lb)

• Source of data
• -- Original-techn. papers.

• Author
• Model page created by Alberto Sanna-Alonso. See "Data change" for further contributors.
