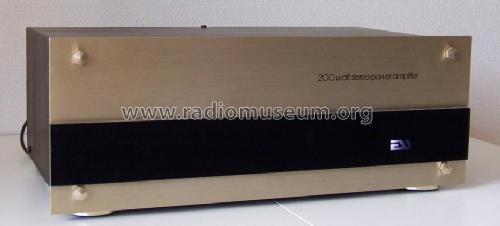

Model 200 Power Amplifier
ESS Electrostatic Sound Systems, Inc.; Sacramento, CA
- Country
- United States of America (USA)
- Manufacturer / Brand
- ESS Electrostatic Sound Systems, Inc.; Sacramento, CA
- Year
- 1974
- Category
- Audio Amplifier or -mixer
- Radiomuseum.org ID
- 198743
-
- Brand: ESS

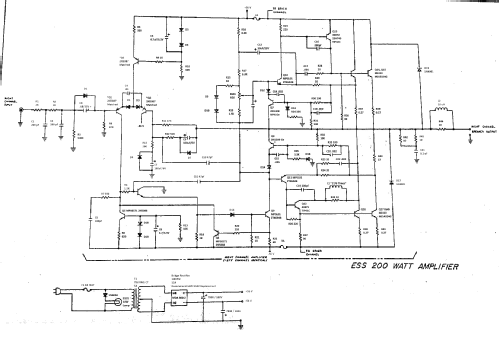

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- Semiconductors present.
- Semiconductors
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Hi-Fi equipment
- Power type and voltage
- Alternating Current supply (AC) / see remarks: 120 or 220 Volt
- Loudspeaker
- - This model requires external speaker(s).
- Power out
- 200 W (undistorted)
- Material
- Metal case
- from Radiomuseum.org
- Model: Model 200 Power Amplifier - ESS Electrostatic Sound
- Shape
- Book-shelf unit.
- Dimensions (WHD)
- 420 x 160 x 295 mm / 16.5 x 6.3 x 11.6 inch
- Notes
-
Power rating: 100 W RMS per channel, 20 - 20,000 Hz into 8 Ω
Frequency response: ±25 dB, 22 - 41,000 Hz (1 W); ±1 dB, 12 - 133,000 Hz (1 W)
Distortion: 0.2%, 20 - 20,000 Hz up to rated outputOiled walnut finish wood case available.
Power supply:
- version for USA: 120 VAC, 60 Hz
- export: 220 VAC
- Mentioned in
- Popular Electronics, 12/1974, p.73
- Literature/Schematics (1)
- - - Manufacturers Literature
- Author
- Model page created by Bo Soerensen. See "Data change" for further contributors.
