• Country
• Germany

• Manufacturer / Brand
• Elektrotechnik Eisenach, VEB, (Ostd.)

• Year
• 1985–1987

• Category
• Car Radio, perhaps also + sound player/recorder

• Radiomuseum.org ID
• 76505

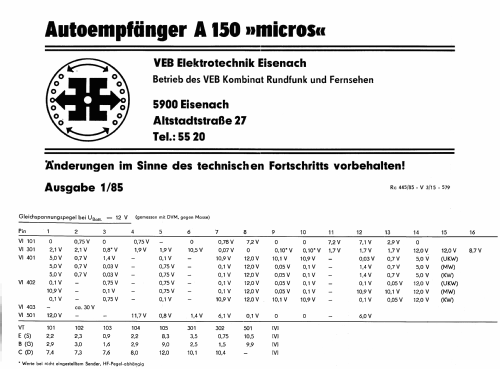

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• SF235 SC236 SF225 SF116 КП302 A281D A244D A210E MAA550 B342D

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Tuned circuits
• 4 AM circuit(s)     6 FM circuit(s)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Storage Battery for all (e.g. for car radios and amateur radios) / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 3.5 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org

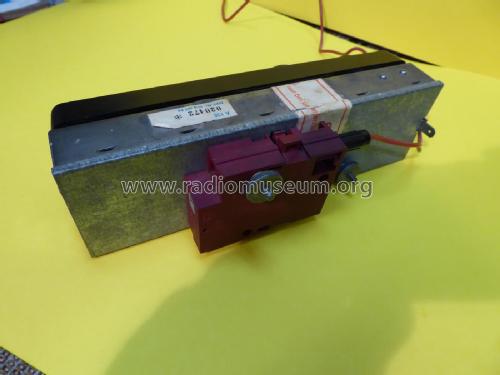

• Model: micros A150 - Elektrotechnik Eisenach, VEB,

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 192 x 55 x 55 mm / 7.6 x 2.2 x 2.2 inch

• Notes

• 5 IS, 20 Dioden, 3 LED, 3 keramische Filter, 3fach-C-Dioden-Abstimmung AM/FM, Flutlichtskala, FM bis 104 MHz, KW nur 49m-Band. Modell A151 nur AM. Vorstellung auf der Leipziger Herbstmesse 1983.

  Bereichsanzeige über farbige LED neben der jeweiligen Skale. UKW - grün, MW - gelb, KW - rot

• Net weight (2.2 lb = 1 kg)
• 0.4 kg / 0 lb 14.1 oz (0.881 lb)

• Price in first year of sale
• 570.00 Mark

• Source of data
• Radiokatalog Band 2, Ernst Erb

• Mentioned in
• -- Original-techn. papers.

• Literature/Schematics (1)
• Service-DVD Funkverlag B. Hein

• Author
• Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
