Lautsprecherchassis S10/1
Elektrophysikalische Werkstätten Neuruppin, VEB; (EPW); Neuruppin (Ostd.)
- Country
- Germany
- Manufacturer / Brand
- Elektrophysikalische Werkstätten Neuruppin, VEB; (EPW); Neuruppin (Ostd.)
- Year
- 1958 ??
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 290595
-
- Brand: Elektro-Physik..
- Wave bands
- - without
- Power type and voltage
- No Power needed

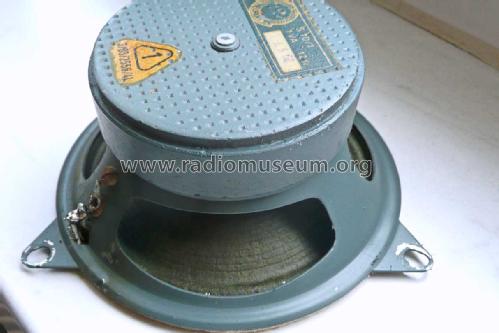

- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch
- Power out
- 1 W (unknown quality)
- Material
- Metal case
- from Radiomuseum.org
- Model: Lautsprecherchassis S10/1 - Elektrophysikalische
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 105 x 105 x 50 mm / 4.1 x 4.1 x 2 inch
- Notes
-

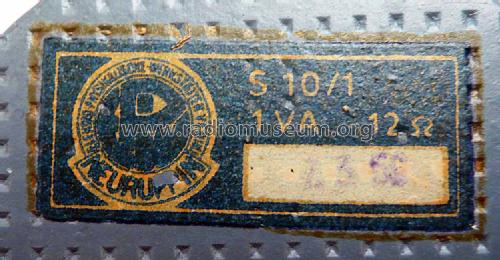

Dieses Chassis mit einer Impedanz von 12 Ω und einer Belastbarkeit von 1 VA wurde u. a. im Radio-Modell Minorette A201 eingebaut.
- Net weight (2.2 lb = 1 kg)
- 0.550 kg / 1 lb 3.4 oz (1.211 lb)
- Author
- Model page created by Klaus-Hartwig Müller. See "Data change" for further contributors.
