- Country
- Germany
- Manufacturer / Brand
- Elektronik Gera, VEB, (Ostd.) (D)
- Year
- 1987 ?
- Category
- Sound/Video Recorder and/or Player
- Radiomuseum.org ID
- 222025

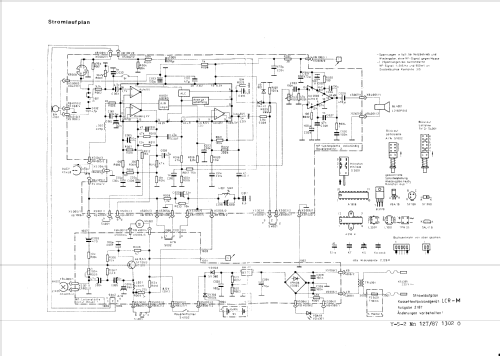

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 1
- Main principle
- Audio-Amplification
- Wave bands
- - without
- Details
- Cassette-Recorder or -Player
- Power type and voltage
- Line / Batteries (any type) / 220 / 6 x 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Power out
- 0.8 W (undistorted)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: LCR-M - Elektronik Gera, VEB, Ostd. D
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 200 x 65 x 265 mm / 7.9 x 2.6 x 10.4 inch
- Notes
-
Der Kassettenrekorder LCR-M ist eine Variante des LCR und hat zusätzlich ein eingebautes Elektretmikrofon, auch bekannt unter GC5000. 3 ICs, Laufwerk MU300 von Stern-Radio Berlin.
- Net weight (2.2 lb = 1 kg)
- 1.9 kg / 4 lb 3 oz (4.185 lb)
- Price in first year of sale
- 498.00 Mark
- Mentioned in
- Geschichte der Phonoindustrie der DDR
- Author
- Model page created by Uwe Ronneberger. See "Data change" for further contributors.
