• Country
• Germany

• Manufacturer / Brand
• Elektronik Gera, VEB, (Ostd.) (D)

• Year
• 1989

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 103165

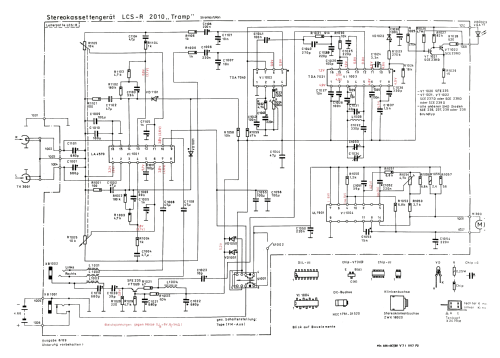

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• FM Broadcast Band Only

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Dry Batteries / 4 × 1,5 Volt

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

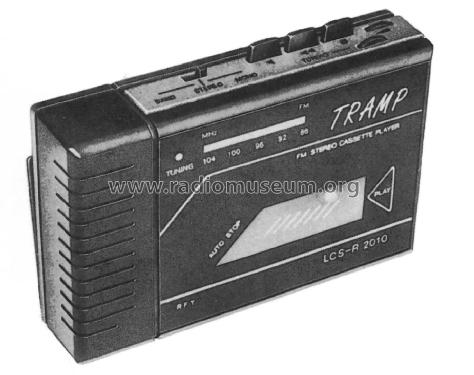

• Model: Tramp LCS-R 2010 - Elektronik Gera, VEB, Ostd. D

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Notes
• Stereo-Kassettenabspielgerät, Nachfolger des LCS1010. Einmotoriges Laufwerk; Wiedergabe, Vorlauf, Stop. Ohrhöreranschluss, Anschlussmöglichkeit von Passiv- oder Aktivboxen. Externe Stromversorgung möglich.

• Net weight (2.2 lb = 1 kg)
• 0.240 kg / 0 lb 8.5 oz (0.529 lb)

• Source of data
• -- Collector info (Sammler)

• Mentioned in
• (DDR) Funkamateur FA 11/1989

• Author
• Model page created by Wolfgang Lill. See "Data change" for further contributors.
