• Country
• Worldwide

• Manufacturer / Brand
• Elektor - Elektuur, Elektor International Media BV; Susteren, NL

• Year
• 1989

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 215836

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 5

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Batteries / addl. power jack / 9-12 / 12 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Metal case

• from Radiomuseum.org

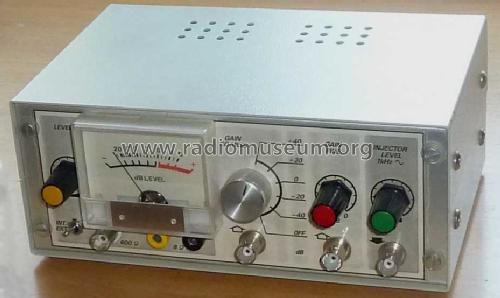

• Model: NF-HF-Signalverfolger - Elektor - Elektuur, Elektor

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 200 x 85 x 140 mm / 7.9 x 3.3 x 5.5 inch

• Notes
• Kompletter Messplatz im Kompaktformat. Stromversorgung aus Batterie 9 - 12V oder Steckernetzgerät 12V.

• Author
• Model page created by Gerhard Heigl. See "Data change" for further contributors.
