• Country
• Germany

• Manufacturer / Brand
• Elektronik Stadtroda, PGH (Ostd.) (D)

• Year
• 1958 ?

• Category
• Pre-stage (adaptor for SW/FM/VHF/UHF incl. built-in), Frequency converter

• Radiomuseum.org ID
• 137796

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 6

• Valves / Tubes
• ECC85 EF89 EF89 EF89 EAA91 EZ80

• Main principle
• Superheterodyne (common); ZF/IF 10700 kHz

• Tuned circuits
• 11 FM circuit(s)

• Wave bands
• FM Broadcast Band Only

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

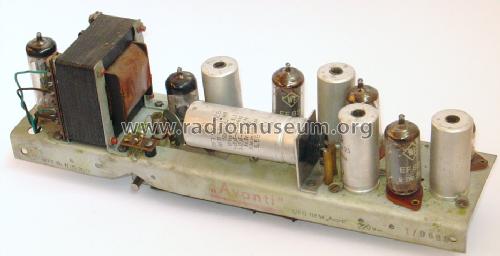

• Model: Avanti UEG116W - Elektronik Stadtroda, PGH Ostd

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 325 x 105 x 80 mm / 12.8 x 4.1 x 3.1 inch

• Notes
• UKW-Einbauchassis mit eigener Stromversorgung. Eingangsteil U4 und Bandfilter 25 bzw. 26 von Neumann (GN). Entspricht dem Chassis von UVG116B/W.

• Net weight (2.2 lb = 1 kg)
• 1.7 kg / 3 lb 11.9 oz (3.744 lb)

• Source of data
• - - Data from my own collection

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Wolfgang Eckardt. See "Data change" for further contributors.
