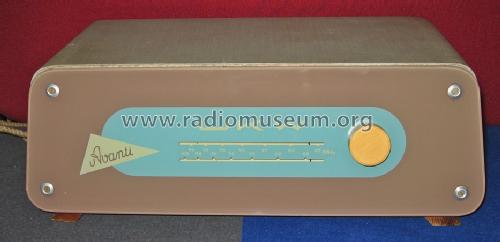

Avanti UVG116B/W mit Ge-Dioden
Elektronik Stadtroda, PGH (Ostd.) (D)
- Country
- Germany
- Manufacturer / Brand
- Elektronik Stadtroda, PGH (Ostd.) (D)
- Year
- 1959 ?
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 257413
Knopf ist nicht original!
- Number of Tubes
- 5
- Number of Transistors
- Semiconductors
- OAA646
- Main principle
- Superheterodyne (common); ZF/IF 10700 kHz
- Tuned circuits
- 11 FM circuit(s)
- Wave bands
- FM Broadcast Band Only
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - For headphones or amp.
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: Avanti UVG116B/W [mit Ge-Dioden] - Elektronik Stadtroda, PGH Ostd
- Shape
- Tablemodel without push buttons, Mantel/Midget/Compact up to 14
- Dimensions (WHD)
- 390 x 140 x 190 mm / 15.4 x 5.5 x 7.5 inch
- Notes
-

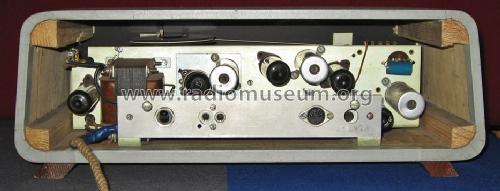

Weiterentwickelte Ausführung des UKW-Vorsatzgerätes UVG116B/W. Der Ratiodetektor ist bestückt mit Halbleiterdioden OAA646 = 2 OA646.
- Net weight (2.2 lb = 1 kg)
- 3.810 kg / 8 lb 6.3 oz (8.392 lb)
- Author
- Model page created by Michael Mischke. See "Data change" for further contributors.
