• Country
• Czechoslovakia

• Manufacturer / Brand
• Elektra, Pražský obchod potřebami pro domácnost; Praha

• Year
• 1946 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 126808

• Number of Tubes
• 1

• Valves / Tubes
• RV12P2000

• Main principle
• TRF with regeneration

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast only (MW).

• Power type and voltage
• Alternating Current supply (AC) / 120/220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Bakelite case

• from Radiomuseum.org

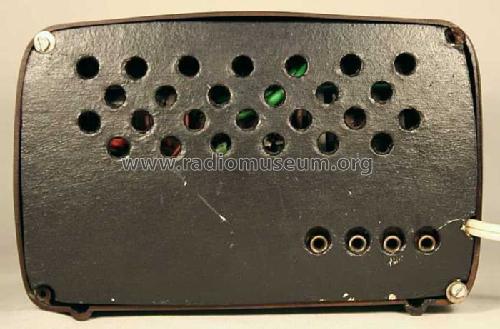

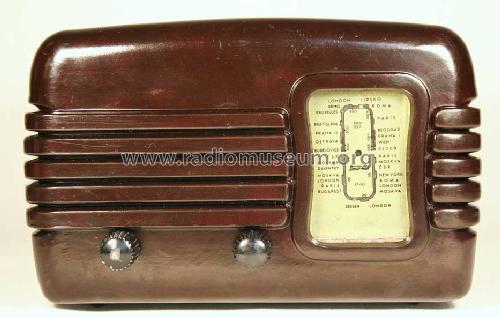

• Model: Sonoreta [Headphone Only Set] - Elektra, Pražský obchod

• Shape
• Tablemodel without push buttons, Mantel/Midget/Compact up to 14

• Dimensions (WHD)
• 7 x 4.5 x 4.5 inch / 178 x 114 x 114 mm

• Notes
• Same case & dial glass as model RV12, but different chassis. Probably sold as a kit.

• Net weight (2.2 lb = 1 kg)
• 1.5 kg / 3 lb 4.9 oz (3.304 lb)

• Source of data
• - - Data from my own collection

• Author
• Model page created by Keith Staines. See "Data change" for further contributors.
