• Country
• Hungary

• Manufacturer / Brand
• Elektral - Revízió Rádióház; Budapest

• Year
• 1932

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 314958

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• AR4101 PP4101 PV495 or E415 B405 B406 or E424 B443 1800

• Main principle
• TRF (Tuned-Radio-Frequency but use of regeneration unknown)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

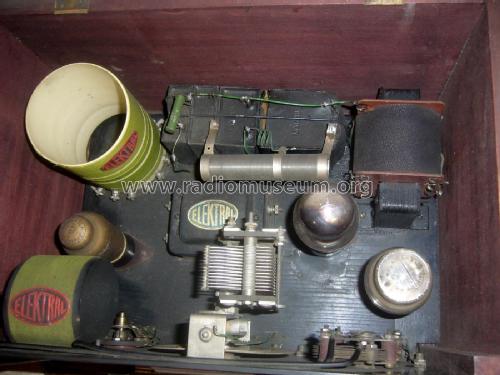

• Model: Elektral 1932S - Elektral - Revízió Rádióház;

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 380 x 230 x 280 mm / 15 x 9.1 x 11 inch

• Price in first year of sale
• 36.67 Pengő

• Literature/Schematics (4)
• Nermzeti Újság, 1932/10.

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
