Schutztransformator St 160/24
Elektrik, Dresden
- Country
- Germany
- Manufacturer / Brand
- Elektrik, Dresden
- Year
- 1970 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 236049
Seitenansicht
Rückseite mit Spezialbuchse
Das Typenschild
Innenleben

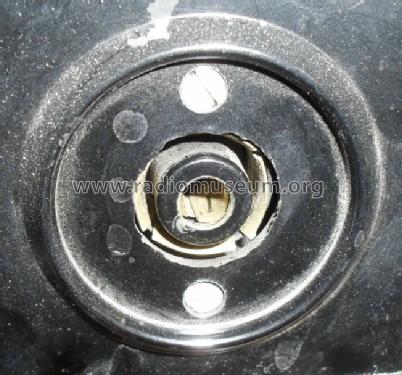

Die Spezialbuchse
Frontseite

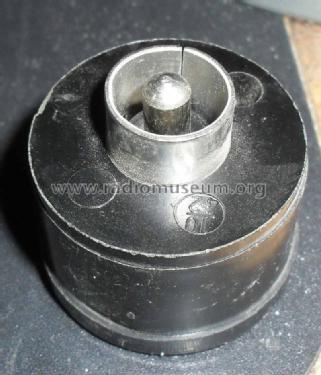

Der zugehörige Spezialstecker
- Wave bands
- - without
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- - - No sound reproduction output.
- Material
- Bakelite or Plastics (type unknown)
- from Radiomuseum.org
- Model: Schutztransformator St 160/24 - Elektrik, Dresden
- Dimensions (WHD)
- 140 x 110 x 200 mm / 5.5 x 4.3 x 7.9 inch
- Notes
-
Schutztransformator, schwere, stabile Ausführung in Bakelit für 220V~. Sekundär 24V ~ 160 VA. Sicherung primärseitig 1,25A. Spezielle Kupplung am 24V - Ausgang.
- Net weight (2.2 lb = 1 kg)
- 6.5 kg / 14 lb 5.1 oz (14.317 lb)
- Author
- Model page created by Reinhard Riek. See "Data change" for further contributors.
