• Country
• Poland

• Manufacturer / Brand
• Elektrit, Wilno

• Year
• 1937/1938

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 74978

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 4

• Valves / Tubes
• AK2 ABC1 AL4 AZ1

• Main principle
• Superheterodyne (common); ZF/IF 128 kHz; 2 AF stage(s); Reflex

• Tuned circuits
• 7 AM circuit(s)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 110-220 Volt

• Loudspeaker

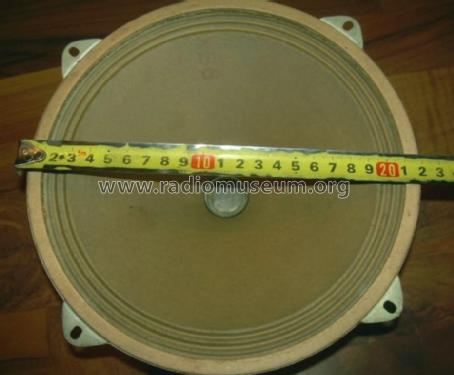

• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 22 cm = 8.7 inch

• Material
• Wooden case

• from Radiomuseum.org
• Model: Presto Z - Elektrit, Wilno

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 525 x 315 x 290 mm / 20.7 x 12.4 x 11.4 inch

• Notes
• Empfindlichkeit - 20 µV, Selektivitat - 70 dB, Leistungsaufnahme - 38 W.

• Price in first year of sale
• 400.00 ZL

• Source of data
• Zlote Lata Radia, Polen

• Author
• Model page created by Henryk Berezowski. See "Data change" for further contributors.
