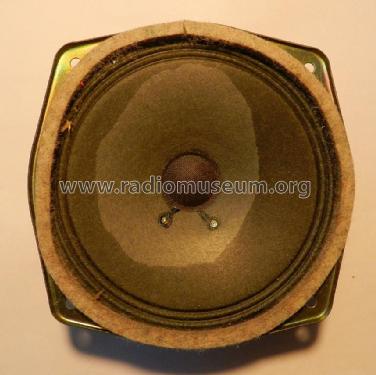

Lautsprecherchassis L2226
Elektrogerätebau Leipzig, VEB; EGB / Elektroakustik Leipzig, VEB; EAL; (Ostd.)
- Country
- Germany
- Manufacturer / Brand
- Elektrogerätebau Leipzig, VEB; EGB / Elektroakustik Leipzig, VEB; EAL; (Ostd.)
- Year
- 1970 ??
- Category
- Loudspeaker, headphone or earphone
- Radiomuseum.org ID
- 257500
-
- Brand: EGB
Katalogbild
- Wave bands
- - without
- Power type and voltage
- No Power needed
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
- Material
- Metal case
- from Radiomuseum.org
- Model: Lautsprecherchassis L2226 - Elektrogerätebau Leipzig, VEB;
- Shape
- Chassis only or for «building in»
- Dimensions (WHD)
- 130 x 130 x 49 mm / 5.1 x 5.1 x 1.9 inch
- Notes
-
Breitbandiges Lautsprecherchassis; Leistung: max. 3 VA, Impedanz: 6 Ω, Übertragungsbereich 100...10.000 Hz.
- Net weight (2.2 lb = 1 kg)
- 0.360 kg / 0 lb 12.7 oz (0.793 lb)
- Mentioned in
- radio fernsehen elektronik 1981; H.9
- Author
- Model page created by Michael Mischke. See "Data change" for further contributors.
