• Country
• Germany

• Manufacturer / Brand
• Elektrogerätebau Leipzig, VEB; EGB / Elektroakustik Leipzig, VEB; EAL; (Ostd.)

• Year
• 1960 ??

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 269157

• • Brand: EGB

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 12.5 W (undistorted)

• Material
• Metal case

• from Radiomuseum.org

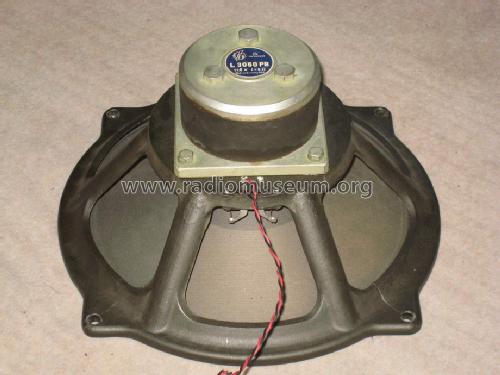

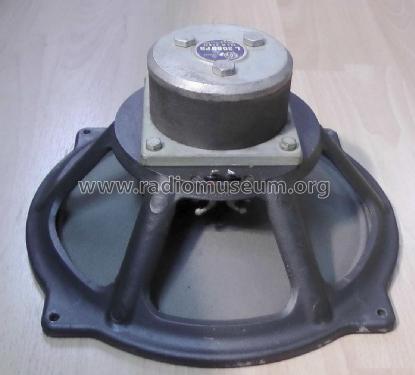

• Model: Lautsprecherchassis L3060 PB - Elektrogerätebau Leipzig, VEB;

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 300 x 300 x 160 mm / 11.8 x 11.8 x 6.3 inch

• Notes

• Breitbandlautsprecher 12,5 W, 40...12000 Hz,  Z= 6 Ω. Leichtmetall-Gusskorb, Nawi-Membran, Hochtonkegel. Alnico 400.

  Entwickelt und auch hergestellt bei Funkwerk Leipzig.

• Net weight (2.2 lb = 1 kg)
• 4 kg / 8 lb 13 oz (8.811 lb)

• Author
• Model page created by a member from A. See "Data change" for further contributors.
