• Country
• Germany

• Manufacturer / Brand
• Elektrogerätebau Leipzig, VEB; EGB / Elektroakustik Leipzig, VEB; EAL; (Ostd.)

• Year
• 1961

• Category
• Loudspeaker, headphone or earphone

• Radiomuseum.org ID
• 222296

• • Brand: EGB

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical

• Material
• Various materials

• from Radiomuseum.org

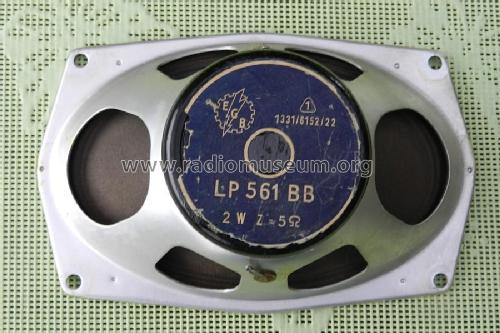

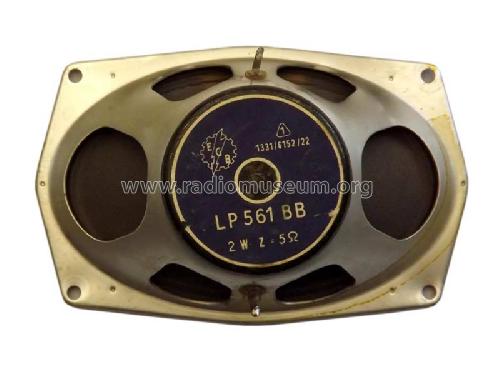

• Model: Lautsprecherchassis LP 561 BB - Elektrogerätebau Leipzig, VEB;

• Shape
• Chassis only or for «building in»

• Dimensions (WHD)
• 180 x 63 x 115 mm / 7.1 x 2.5 x 4.5 inch

• Notes
• Universallautsprecher, Breitbandlautsprecher mit Hochtonkegel. Nennscheinwiderstand: 5 Ω, Nennbelastbarkeit: 2 VA. Magnetsystem: Type 19/4, Korb: Blech offen, Korbform: oval mit Befestigungsohren und Befestigungslöchern. Befestigungslochkreis: 145 x 90 mm, Schallwandlochdurchmesser: 165 x 100 mm.

• Net weight (2.2 lb = 1 kg)
• 0.495 kg / 1 lb 1.4 oz (1.09 lb)

• Author
• Model page created by Jürgen Tiedmann. See "Data change" for further contributors.
