• Country
• Germany

• Manufacturer / Brand
• Elektromesstechnik Wilhelm H. Franz K.G. (EMT); Lahr

• Year
• 1977 ??

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 347756

• • alternative name: FRANZ Vertriebsges. mbH

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 115; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Helcoscriptor EMT HE16 - Elektromesstechnik Wilhelm H.

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 310 x 135 x 210 mm / 12.2 x 5.3 x 8.3 inch

• Notes

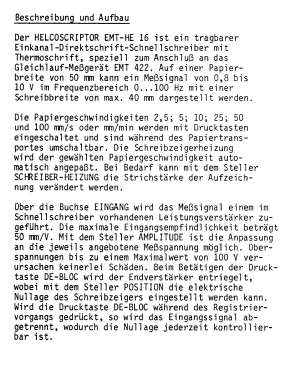

• Einkanal-Direktschrift-Schnellschreiber mit Thermoschrift.

  Speziell zum Anschluss an das Gleichlauf-Messgerät EMT 422.

  Meßsignal: 0 ... 10 V
  Frequenzbereich: 0 ... 100 Hz
  Schreibbreite: max. 40 mm
  Papiergeschwindigkeiten: 2,5 / 5 / 10 / 25 / 50 / 100 mm/s

• Net weight (2.2 lb = 1 kg)
• 6.7 kg / 14 lb 12.1 oz (14.758 lb)

• Author
• Model page created by a member from D. See "Data change" for further contributors.
