• Country
• Germany

• Manufacturer / Brand
• Elektromesstechnik Wilhelm H. Franz K.G. (EMT); Lahr

• Year
• 1943 ?

• Category
• Military Equipment (not Re, Tr or RXT)

• Radiomuseum.org ID
• 272868

• • alternative name: FRANZ Vertriebsges. mbH

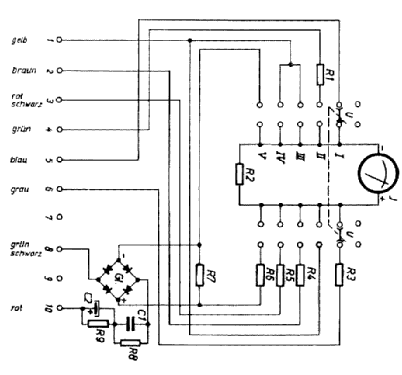

Click on the schematic thumbnail to request the schematic as a free document.

• Wave bands
• - without

• Power type and voltage
• No Power needed

• Loudspeaker
• - - No sound reproduction output.

• Material
• Various materials

• from Radiomuseum.org

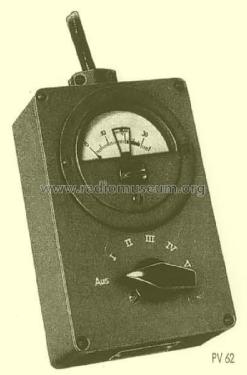

• Model: Prüfvoltmeter PV62 - Elektromesstechnik Wilhelm H.

• Dimensions (WHD)
• 100 x 165 x 80 mm / 3.9 x 6.5 x 3.1 inch

• Notes

• Beim PV62 handelt es sich um das erste Gerät das von dieser Firma hergestellt wurde:

  Zitat aus Firmenfestschrift:

  "The EMT 75th Diamond Jubilee Celebrating 75 Years Of Our Company
  75 YEARS INNOVATION & EXCELLENCE":

  The very first EMT product, a test voltmeter called the PV62, is still featured as a stylized measurement device in the company logo.

  Es diente zur Prüfung folgender Geräte:

  FuG25, FuG25a, FuSE62, FuSE65, FuG200, FuG203, FuG212, FuG213,AAPG212 und GPG 212



• Net weight (2.2 lb = 1 kg)
• 1 kg / 2 lb 3.2 oz (2.203 lb)

• Mentioned in
• Werkstattbuch Nr.621 - Prüfvoltmeter PV 62 Okt. 1943

• Literature/Schematics (1)
• "The EMT 75th Diamond Jubilee Celebrating 75 Years Of Our Company 75 YEARS INNOVATION & EXCELLENCE"
