Audio-Frequency RC Oscillator 1113/C

• Country
• Hungary

• Manufacturer / Brand
• EMG, Orion-EMG, Elektronikus Mérökészülélek Gyára; Budapest

• Year
• 1957–1960 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 227012

• Picture

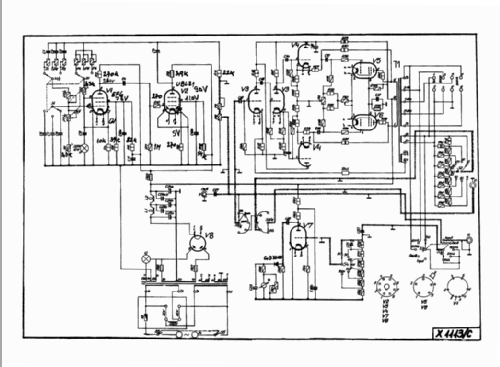

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 8

• Valves / Tubes
• EF6 UBL21 6SN7 6SN7 807 807 6J5 PV200/600

• Main principle
• Audio-Amplification

• Wave bands
• Wave Bands given in the notes.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org
• Model: Audio-Frequency RC Oscillator 1113/C - EMG, Orion-EMG, Elektronikus M

• Shape
• Boatanchor (heavy military or commercial set >20 kg).

• Dimensions (WHD)
• 429 x 319 x 240 mm / 16.9 x 12.6 x 9.4 inch

• Notes

• 20Hz - 20kHz in 3 subbands.

• Net weight (2.2 lb = 1 kg)
• 26.8 kg / 59 lb 0.5 oz (59.031 lb)

• Source of data
• -- Original-techn. papers.

• Mentioned in
• -- Original-techn. papers.

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
