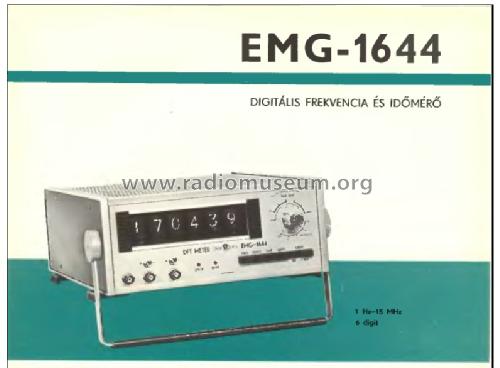

Digitális frekvencia és idömérö 1644/TR5260
EMG, Orion-EMG, Elektronikus Mérökészülélek Gyára; Budapest
- Country
- Hungary
- Manufacturer / Brand
- EMG, Orion-EMG, Elektronikus Mérökészülélek Gyára; Budapest
- Year
- 1978 ??
- Category
- Service- or Lab Equipment
- Radiomuseum.org ID
- 162957
- Loudspeaker
- - - No sound reproduction output.
- Material
- Metal case
- from Radiomuseum.org
- Model: Digitális frekvencia és idömérö 1644/TR5260 - EMG, Orion-EMG, Elektronikus M
- Shape
- Tablemodel, with any shape - general.
- Dimensions (WHD)
- 350 x 120 x 290 mm / 13.8 x 4.7 x 11.4 inch
- Notes
- 1 Hz-15 MHz, sensibility: 10 mV, Imp.:1 Mohm,50 pF. Time: 1 µs-10000000 s, Uin: 2-10 V, 2 kOhm.
- Net weight (2.2 lb = 1 kg)
- 4.5 kg / 9 lb 14.6 oz (9.912 lb)
- Literature/Schematics (1)
- MTA Kölcsönmüszerek Jegyzéke, Bp.1983
- Author
- Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
