• Country
• Hungary

• Manufacturer / Brand
• Hiradástechnika Szövetkezet (HTSZ); Budapest

• Year
• 1964 ?

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 139925

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 10

• Valves / Tubes
• ECC85 ECC85 ECC85 ECC85 ECH84 ECL82 PCC88 PCC88 PCC88 150C2 DG7-113A

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 127; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org
• Model: Fernseh-Wobbuloskop TR-0813 - Hiradástechnika Szövetkezet

• Shape
• Tablemodel, high profile (upright - NOT Cathedral nor decorative).

• Dimensions (WHD)
• 210 x 330 x 380 mm / 8.3 x 13 x 15 inch

• Notes

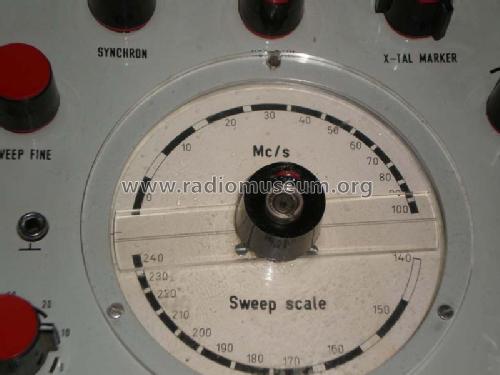

• Fernseh-Wobbuloskop TR-0813, Wobbulatorteil: Frequenzbereich 1 bis 240 MHz, Frequenzhub 0,5 bis 15 MHz, Y Verstärker 20 Hz bis 1 MHz, Empfindlichkeit 50 mV/cm.

• Net weight (2.2 lb = 1 kg)
• 10 kg / 22 lb 0.4 oz (22.026 lb)

• Mentioned in
• - - Manufacturers Literature (Funktechnik 24. 1963)

• Author
• Model page created by Karlheinz Fischer. See "Data change" for further contributors.
