• Country
• Hungary

• Manufacturer / Brand
• EMG, Orion-EMG, Elektronikus Mérökészülélek Gyára; Budapest

• Year
• 1959–1961

• Category
• Service- or Lab Equipment

• Radiomuseum.org ID
• 139153

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• 6AU6 6X4 EM4

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - - No sound reproduction output.

• Material
• Metal case

• from Radiomuseum.org

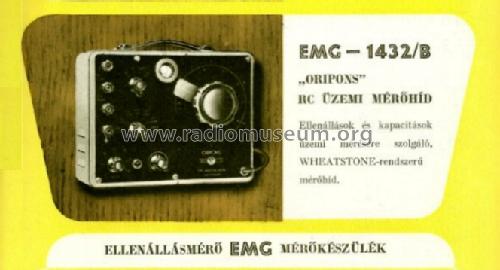

• Model: Oripons 1432/B /TR-2101-B - EMG, Orion-EMG, Elektronikus M

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 240 x 180 x 100 mm / 9.4 x 7.1 x 3.9 inch

• Notes
• Widerstand- und Kapazitätsmessgerät mittels magischem Auge.
  In 7 Dekaden Messbereich: 100 pF - 1000 µF;
  In 7 Dekaden Messbereich: 1 Ω - 10 MΩ.
  Auch in Brückenschaltung mit externen R/C.
  Oripons: Kunstwort in Verbindung mit dem damaligen Firmennamen Orion/ Budapest.

• Net weight (2.2 lb = 1 kg)
• 4.2 kg / 9 lb 4 oz (9.251 lb)

• Price in first year of sale
• 2,600.00 Forint

• Source of data
• -- Collector info (Sammler)

• Literature/Schematics (1)
• Magyar Műszerek Katalógusa, MIGÉRT, 1961.

• Literature/Schematics (4)
• EMG katalog 1959

• Author
• Model page created by Willi Ribbe. See "Data change" for further contributors.
