FM-AM Koral TOA511
Ei, Elektronska Industrija; Niš - see also RR
- Country
- Yugoslavia
- Manufacturer / Brand
- Ei, Elektronska Industrija; Niš - see also RR
- Year
- 1969/1970
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 328197
-
- Brand: Ei

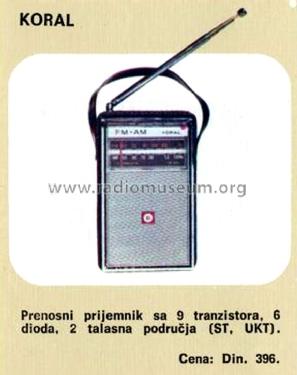

From Ei Nis catalogue 69/70
- Number of Transistors
- 9
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 452/10700 kHz
- Tuned circuits
- 6 AM circuit(s) 5 FM circuit(s)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Dry Batteries / R6: 4 x 1.5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 0.2 W (unknown quality)
- Material
- Leather / canvas / plastic - over other material
- from Radiomuseum.org
- Model: FM-AM Koral TOA511 - Ei, Elektronska Industrija; Ni
- Shape
- Very small Portable or Pocket-Set (Handheld) < 8 inch.
- Dimensions (WHD)
- 90 x 144 x 42 mm / 3.5 x 5.7 x 1.7 inch
- Notes
-
Wavebands:
FM = 86.5 - 108 MHz
MW = 530 - 1605 kHz9 transistors + 6 diodes.
Schematic identical to the model Haiti
- Net weight (2.2 lb = 1 kg)
- 0.470 kg / 1 lb 0.6 oz (1.035 lb)
- Price in first year of sale
- 396.00 Din
- Mentioned in
- -- Original prospect or advert (Tranzistorski Prijemnici, '69/70)
- Author
- Model page created by Milosav Zivojinovic. See "Data change" for further contributors.
