• Country
• Yugoslavia

• Manufacturer / Brand
• Ei, Elektronska Industrija; Niš - see also RR

• Year
• 1966 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 135958

• • Brand: Ei

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 5

• Valves / Tubes

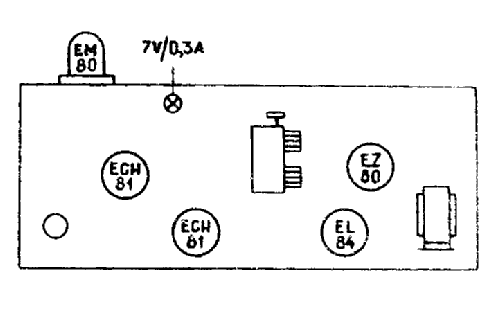

• ECH81 ECH81 EL84 EZ80 EM80

• Number of Transistors

• Semiconductors
• AA116

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Long Wave and Short Wave.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Melodija-F Model B - Ei, Elektronska Industrija; Ni

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 560 x 230 x 225 mm / 22 x 9.1 x 8.9 inch

• Notes

• Wavebands:
  SW = 15 - 53.5 m
  MW = 186 - 590 m
  LW = 900 - 2000 m

  Tone register with 4 push buttons.

• Net weight (2.2 lb = 1 kg)
• 8 kg / 17 lb 9.9 oz (17.621 lb)

• Mentioned in
• -- Schematic

• Author
• Model page created by Zenonas Langaitis. See "Data change" for further contributors.
