- Country
- Yugoslavia
- Manufacturer / Brand
- Ei, Elektronska Industrija; Niš - see also RR
- Year
- 1970 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 289669
-
- Brand: Ei
from my collection
Click on the schematic thumbnail to request the schematic as a free document.
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast, Short Wave plus FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Wooden case
- from Radiomuseum.org

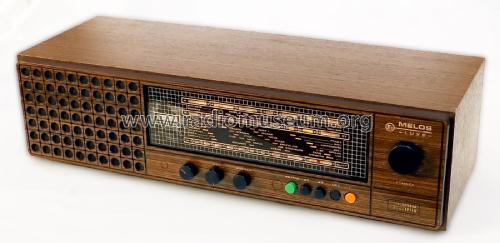

- Model: Melos Luxe - Ei, Elektronska Industrija; Ni
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 550 x 150 x 210 mm / 21.7 x 5.9 x 8.3 inch
- Author
- Model page created by Danilo Crnogorac. See "Data change" for further contributors.
