• Country
• Yugoslavia

• Manufacturer / Brand
• Ei, Elektronska Industrija; Niš - see also RR

• Year
• 1970/1971

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 169774

• • Brand: Ei

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 11

• Semiconductors
• AF106 AF125 AF272 or. AF125 AF126 AF260 AC555 AD162 or. AD457 BY130 AA130 AA112 AA121 BA138 BZ12

• Main principle
• Superheterodyne (common); ZF/IF 452/10700 kHz

• Tuned circuits
• 7 AM circuit(s)     10 FM circuit(s)

• Wave bands
• Broadcast, Long Wave, Short Wave plus FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Power out
• 5 W (unknown quality)

• Material
• Wooden case

• from Radiomuseum.org
• Model: Mexico - Ei, Elektronska Industrija; Ni

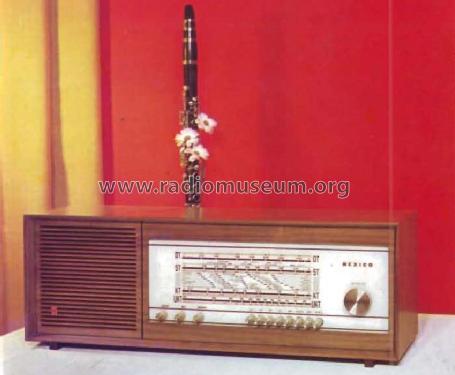

• Shape
• Tablemodel with Push Buttons.

• Dimensions (WHD)
• 692 x 248 x 196 mm / 27.2 x 9.8 x 7.7 inch

• Notes

• Wavebands:
  FM = 87.5 - 108 MHz
  SW = 5.2 - 9.2 MHz
  MW = 515 - 1620 kHz
  LW = 150 - 330 kHz

  Speaker: DZ 0800/M2-2

  Transistors and diodes mentioned once per type.

• Mentioned in

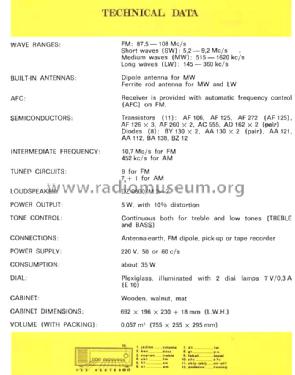

• -- Original prospect or advert (Radioprijemnici i pribor, '70/71)

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Sándor Selyem-Tóth. See "Data change" for further contributors.
