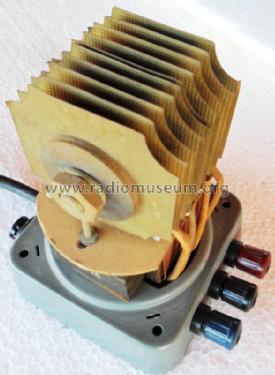

Trockengleichrichter LGe 6/1

Elektrowärme Sörnewitz (EWS); VEB (Ostd.)

Data
Forum
Pictures
Collections

  • Year
  • 1953
  • Category
  • Power supply/conditioner or battery or charger
  • Radiomuseum.org ID
  • 250632

 Technical Specifications

  • Wave bands
  • - without
  • Power type and voltage
  • Alternating Current supply (AC) / 125; 220 Volt
  • Loudspeaker
  • - - No sound reproduction output.
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Trockengleichrichter LGe 6/1 - Elektrowärme Sörnewitz EWS;
  • Shape
  • Tablemodel without push buttons, Mantel/Midget/Compact up to 14
  • Dimensions (WHD)
  • 100 x 135 x 100 mm / 3.9 x 5.3 x 3.9 inch
  • Notes

  • Trockengleichrichter LGe 6/1 für Batterieladestrom prim. 125/220V;  sek. 6 Volt, 1A.
    Intern umschaltbar auf 125V gemäß Schaltbild.
    Sek. 3  Anschlußklemmen für Bananenstecker.
    Blau -   Rot +              = 6V
    Blau -   Schwarz 0       = 2V
    Schwarz  0 Rot +        = 4V

  • Net weight (2.2 lb = 1 kg)
  • 1.750 kg / 3 lb 13.7 oz (3.855 lb)
  • Author
  • Model page created by Oskar Elm. See "Data change" for further contributors.
