Sintomatic TV
Elettrodin - Cora; (where/dove?)
- Country
- Italy
- Manufacturer / Brand
- Elettrodin - Cora; (where/dove?)
- Year
- 1964 ??
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 207097
- Number of Tubes
- 5
- Main principle
- Superheterodyne (common)
- Wave bands
- Broadcast (BC) and FM or UHF.
- Power type and voltage
- Alternating Current supply (AC) / 110; 120; 140; 160; 220 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Sintomatic [TV] - Elettrodin - Cora; where/dove?
- Shape
- Tablemodel with Push Buttons.
- Dimensions (WHD)
- 375 x 170 x 150 mm / 14.8 x 6.7 x 5.9 inch
- Notes
-
Ingresso fono. Gamme d'onda: onde medie, MF, audio tv. Esiste anche variante, con diverso selettore gamme d'onda, senza audio TV.
- Net weight (2.2 lb = 1 kg)
- 3.9 kg / 8 lb 9.4 oz (8.59 lb)
- Author
- Model page created by Giovanni Scalavino. See "Data change" for further contributors.
- Other Models
-
Here you find 8 models, 7 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
All listed radios etc. from Elettrodin - Cora; (where/dove?)
Collections
The model Sintomatic is part of the collections of the following members.
Forum contributions about this model: Elettrodin - Cora;: Sintomatic
Threads: 1 | Posts: 2
Salve,chiedo aiuto per identificare questo modello di radio marca cora.
Invio foto per maggiori spunti.
Attachments

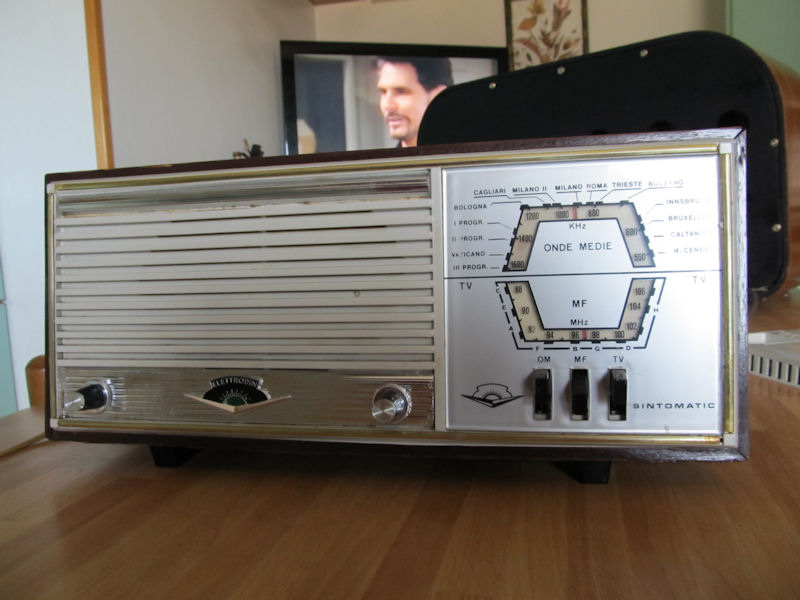

- radio cora mod. sconosciuto vista frontale (77 KB)
- radio cora mod. sconosciuto vista posteriore aperta (70 KB)

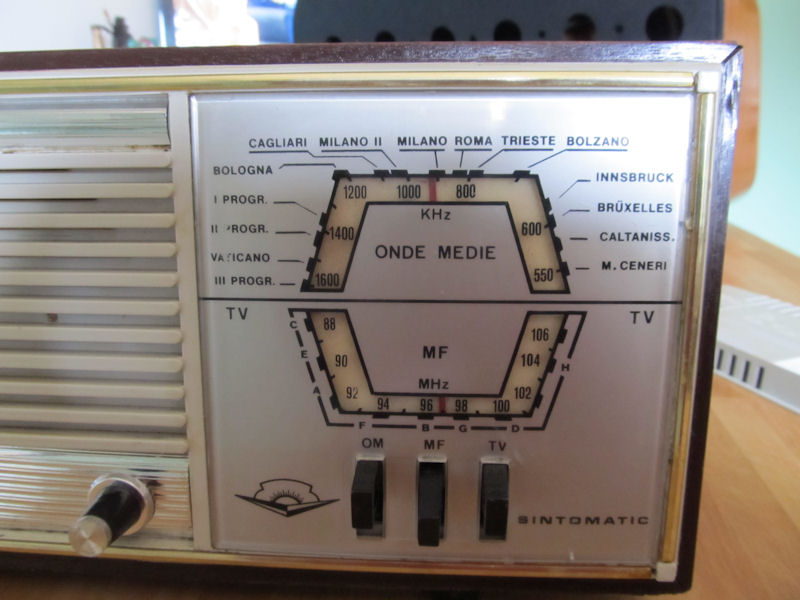

- radio cora mod. sconosciuto vista scala metrica (81 KB)
Giovanni Scalavino, 20.Nov.11
