• Country
• Lithuania (Lithuania, Vilnius)

• Manufacturer / Brand
• ELFA Elektrotechnical Works, Vilnius

• Year
• 1982

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 87987

• • alternative name: Vilnius Electrotechnical Works

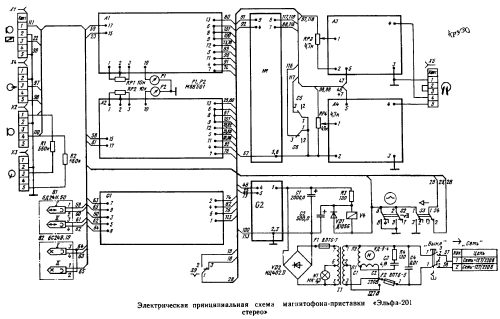

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Details
• Tape Recorder

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Various materials

• from Radiomuseum.org
• Model: Elfa 201s - ELFA Elektrotechnical Works,

• Shape
• Tablemodel, with any shape - general.

• Dimensions (WHD)
• 470 x 310 x 160 mm / 18.5 x 12.2 x 6.3 inch

• Notes
• Tape recorder deck. For tracks, two motors. Tape speed 19,05 and 9,53 cm/sec. Used for foreign languages learning in secondary schools special class rooms - in all past USSR territory. In the same time possible recoding on one tape way, when another tape way is hearing.

• Net weight (2.2 lb = 1 kg)
• 12.5 kg / 27 lb 8.5 oz (27.533 lb)

• Price in first year of sale
• 255.00 RUR

• Source of data
• -- Collector info (Sammler)

• Author
• Model page created by Zenonas Langaitis. See "Data change" for further contributors.

• Other Models

• Here you find 36 models, 35 with images and 18 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
