AM Clock Radio 10 Transistor R-2000
Elgin Radio Division; Maspeth, (NY)
- Country
- United States of America (USA)
- Manufacturer / Brand
- Elgin Radio Division; Maspeth, (NY)
- Year
- 1968
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 293882

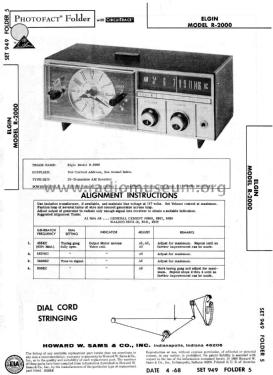

Sams Photofact Folder 5 Set 949 Date 4-68
- Number of Transistors
- 10
- Semiconductors
- Main principle
- Superheterodyne (common); ZF/IF 455 kHz
- Wave bands
- Broadcast only (MW).
- Details
- Radio with other functions
- Power type and voltage
- Alternating Current supply (AC) / 110-120 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: AM Clock Radio 10 Transistor R-2000 - Elgin Radio Division; Maspeth,
- Shape
- Tablemodel with Clock ((Alarm-) Clock Radio).
- Dimensions (WHD)
- 4.125 x 4.5 x 5 inch / 105 x 114 x 127 mm
- Notes
-
Elgin AM-Analog-Clock Radio Model R-2000.
Range 540 - 1600 KC
Alarm, Snooze function
Earphone Jack
Power Consumption 4 WattsMade in Japan
- Mentioned in
- Photofact Folder, Howard W. SAMS (Set 949 Folder 5 Date 4-68)
- Author
- Model page created by Franz Scharner. See "Data change" for further contributors.
